法兰球阀系列

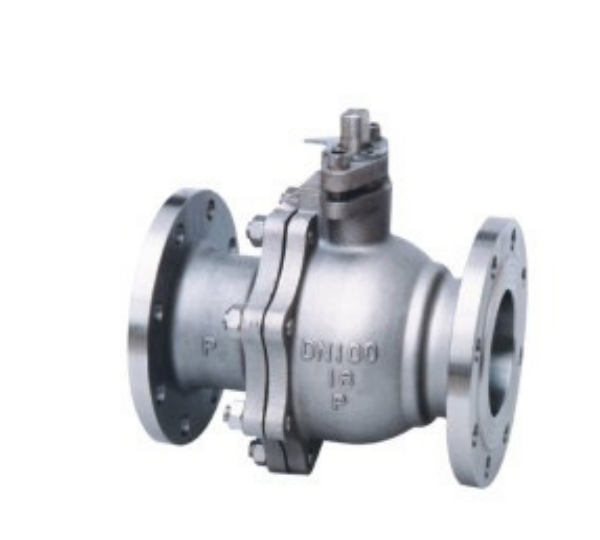

产品详情

厂家手册给出了 Q41F、Q341F、Q641F 和 Q9B41F 系列的尺寸表，并示意防火结构和蜗轮传动。本页未提供完整材质表，因此询价前必须在准确型号资料中确认阀体、球体、阀杆、阀座、防火试验及执行机构信息。

产品分类

Industrial Valves

型号 / 应用范围

Q41F / Q341F / Q641F / Q9B41F · PN1.6-PN6.4 MPa · DN15-DN250 by rating

Manufacturer

Hebei Xinghe Valve Manufacturing Co., Ltd.

Model Families

Catalogue lists Q41F, Q341F, Q641F and Q9B41F families with C/P material suffixes.

Nominal Diameter

DN15-DN250 shown for PN1.6, PN2.5 and PN4.0 MPa; DN15-DN150 shown for PN6.4 MPa.

Working Pressure

PN1.6, PN2.5, PN4.0 and PN6.4 MPa dimensional tables are shown.

Materials

Not fully stated on the supplied catalogue page; exact body, ball, stem and seat materials are required before quotation.

Connection

Flanged ends.

Operation

Manual and worm-gear arrangements are illustrated; confirm actuator and accessories by exact model.

Fire-Safe Requirement

A fire-safe structure is illustrated, but test standard and certification must be verified for the exact quoted model.

Source

Manufacturer catalogue page 5; final datasheet and approval documents required for the exact model.
