产品详情

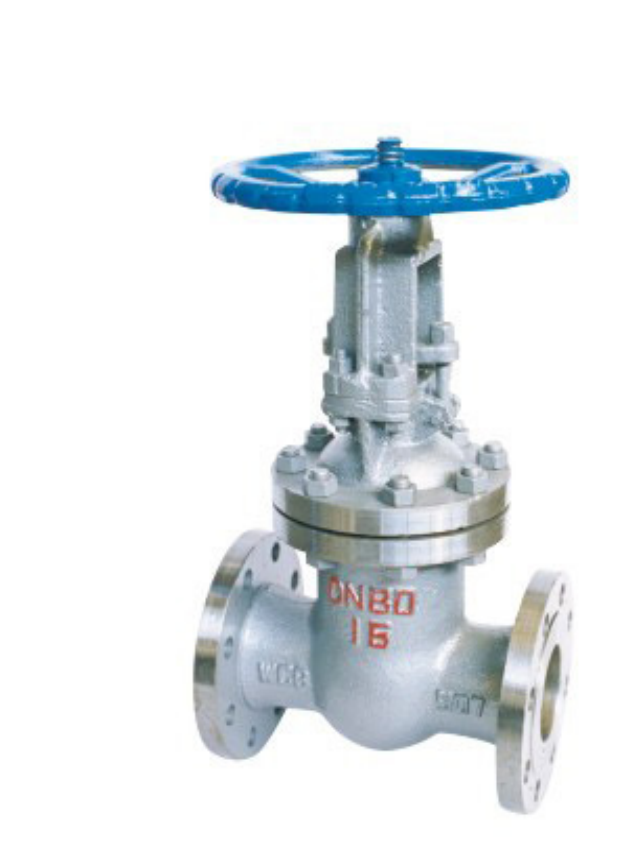

厂家手册列明全通径、明杆带支架、螺栓连接阀盖、导向弹性闸板和法兰连接，可选升降阀杆/手轮配置及齿轮传动。询价前应按准确型号确认阀体与内件材质、公称通径、压力温度等级和介质兼容性。
- 产品分类
- Industrial Valves
- 型号 / 应用范围
- Z41 / Z40 / KZ41 / Z540 series · PN1.6 MPa · DN40-DN1000 shown by model
- Manufacturer
- Hebei Xinghe Valve Manufacturing Co., Ltd.
- Model Families
- Catalogue lists Z41H/Y/W, Z40H/Y/W, KZ41Y/KZ40Y and Z540H/Y families; suffix varies by material and configuration.
- Nominal Diameter
- DN40-DN1000 shown in the PN1.6 MPa table; availability depends on exact model.
- Working Pressure
- PN1.6 MPa table shown in the supplied catalogue; confirm any other rating.
- Body / Trim Materials
- WCB, ZGCr5Mo, CF8 and related grades are listed; confirm exact body, stem, packing and gasket combination.
- Temperature Range
- Catalogue material table spans -40°C to 450°C depending on material option.
- Service Media
- Water, oil, steam, nitric acid or acetic acid, subject to verified material compatibility.
- Connection
- Flanged ends.
- Catalogue Standards
- GB/T 12234, GB/T 12221, JB/T 79, JB/T 9092, GB/T 9131, GB/T 12220 and JB/T 7928 are listed; confirm the current applicable edition.
- Source
- Manufacturer catalogue page 1; final datasheet and approval documents required for the exact model.
证书核验： 投标前请根据准确型号与最新证书文件核验 ISO、CE、MID、WRAS、ACS、NSF 或其他认证。
