产品详情

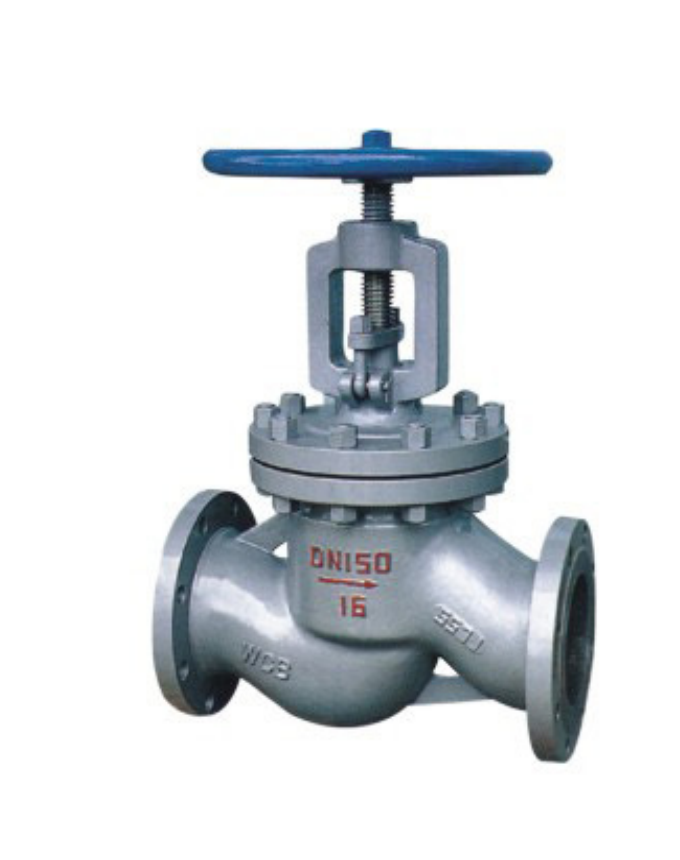

厂家手册列明流线型流道、明杆支架、螺栓连接阀盖、松套阀瓣、升降阀杆和手轮，部分型号可配齿轮传动。应按准确型号确认材质、公称通径、压力等级、工作温度和介质兼容性。
- 产品分类
- Industrial Valves
- 型号 / 应用范围
- J41 / J941 series · PN1.6-PN2.5 MPa · DN15-DN300 shown by model
- Manufacturer
- Hebei Xinghe Valve Manufacturing Co., Ltd.
- Model Families
- Catalogue lists J41H/Y/B/W and J941H/Y/W families; suffix varies by material and configuration.
- Nominal Diameter
- DN15-DN300 shown in the PN1.6 MPa and PN2.5 MPa tables.
- Working Pressure
- PN1.6 MPa and PN2.5 MPa tables are shown in the supplied catalogue.
- Body / Trim Materials
- WCB, ZGCr5Mo, CF8 and related grades are listed; confirm exact body, disc, stem, packing and gasket combination.
- Temperature Range
- Catalogue material table spans -40°C to 450°C depending on material option.
- Service Media
- Water, oil, steam, nitric acid or acetic acid, subject to verified material compatibility.
- Connection
- Flanged ends.
- Catalogue Standards
- GB/T 12235, GB/T 12221, JB/T 79, JB/T 9092, GB/T 9131, GB/T 12220 and JB/T 7928 are listed; confirm the current applicable edition.
- Source
- Manufacturer catalogue page 2; final datasheet and approval documents required for the exact model.
证书核验： 投标前请根据准确型号与最新证书文件核验 ISO、CE、MID、WRAS、ACS、NSF 或其他认证。
