Product Details
The manufacturer catalogue lists a bolted bonnet, swing or lift-type disc, flanged ends and suitability for horizontal or vertical lines depending on configuration. The H44 family table spans multiple material and pressure options. Flow direction, installation orientation, pressure class, body and sealing materials must be confirmed against the selected model.
- Category
- Industrial Valves
- Application Range
- H44 series · PN1.6-PN25 MPa · DN25-DN500 shown by table
- Manufacturer
- Hebei Xinghe Valve Manufacturing Co., Ltd.
- Model Family
- Catalogue lists H44H/Y/W material and pressure variants; exact suffix must be confirmed.
- Nominal Diameter
- DN25-DN500 shown in the PN25 table; the PN40 table shown covers DN25-DN65.
- Working Pressure
- Catalogue family table lists PN1.6-PN25 MPa variants; size availability depends on rating.
- Body / Disc Materials
- WCB, WC6, LCB, CF8M and related disc/arm materials are listed; verify the exact combination.
- Temperature Range
- Catalogue material table spans -46°C to 550°C depending on material option.
- Service Media
- Water, oil, steam, propane, ethene or nitric acid, subject to verified material compatibility.
- Connection
- Flanged ends.
- Catalogue Standards
- GB/T 12236 / GB/T 12235, GB/T 12221, JB/T 79, GB/T 9131, GB/T 12220 and JB/T 7928 are listed; confirm the current applicable edition and test requirement.
- Source
- Manufacturer catalogue pages 3-4; final datasheet and approval documents required for the exact model.
Certificate check: ISO, CE, MID, WRAS, ACS, NSF or other approvals must be verified against the exact model and current certificate files before tender use.

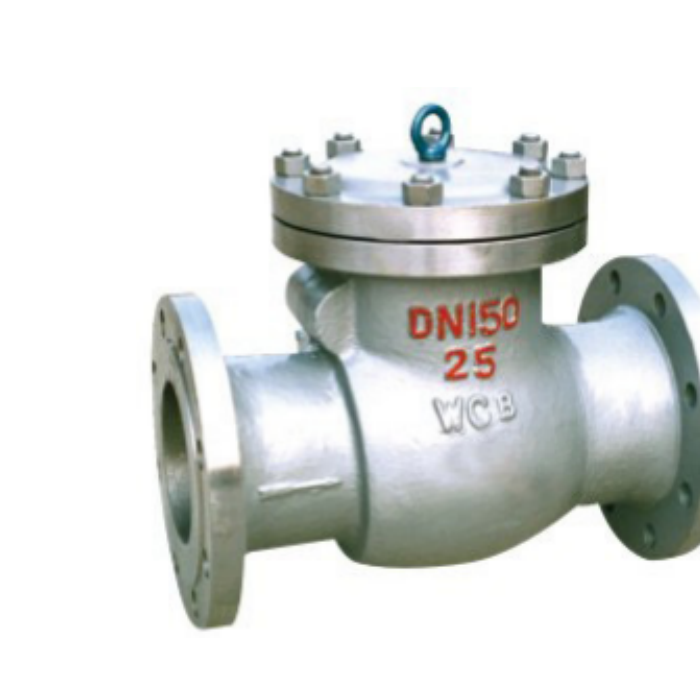

Product Images
